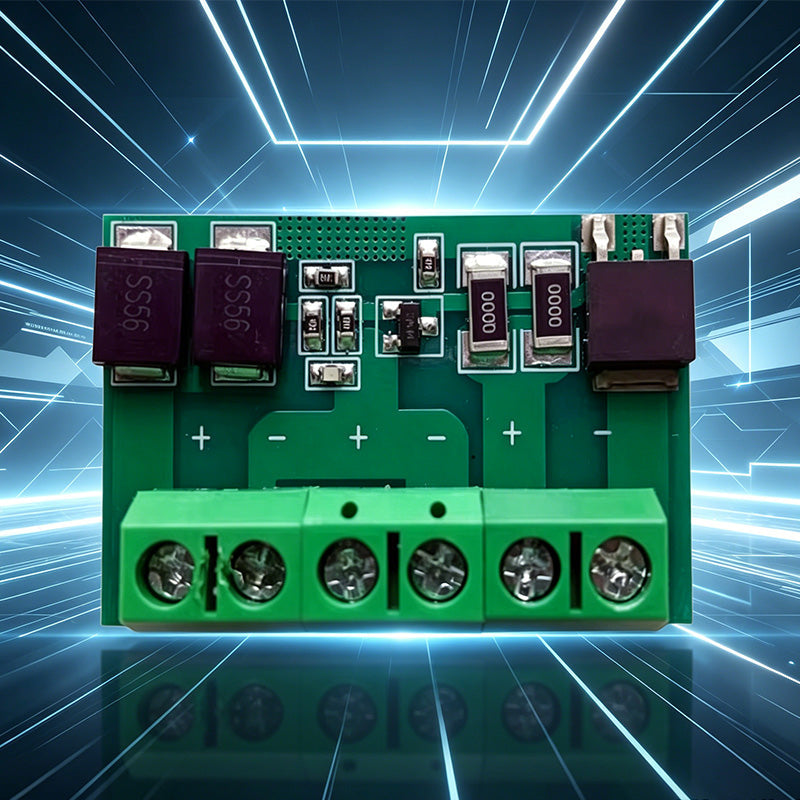

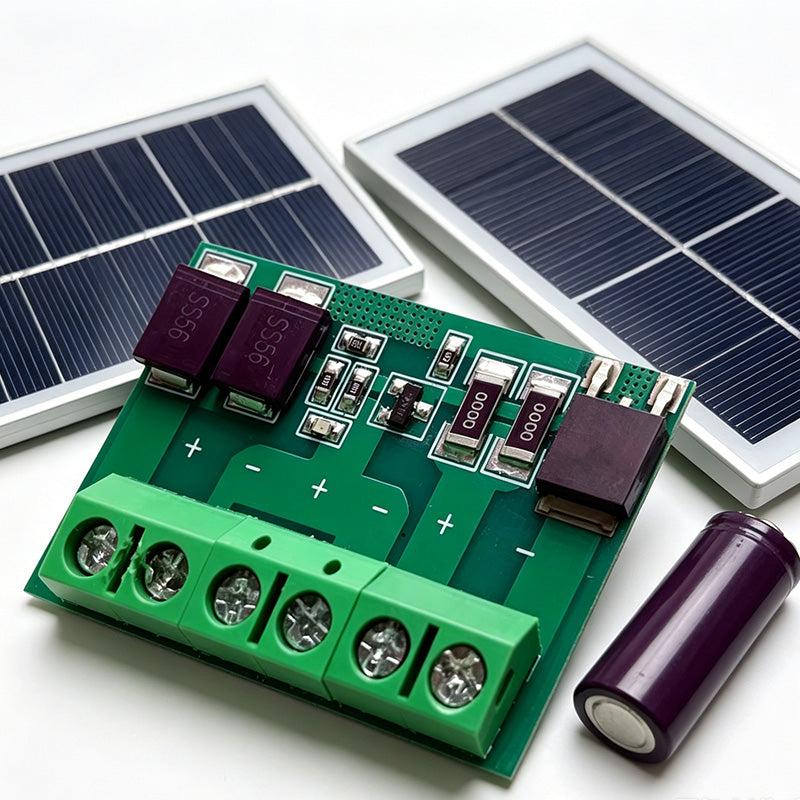

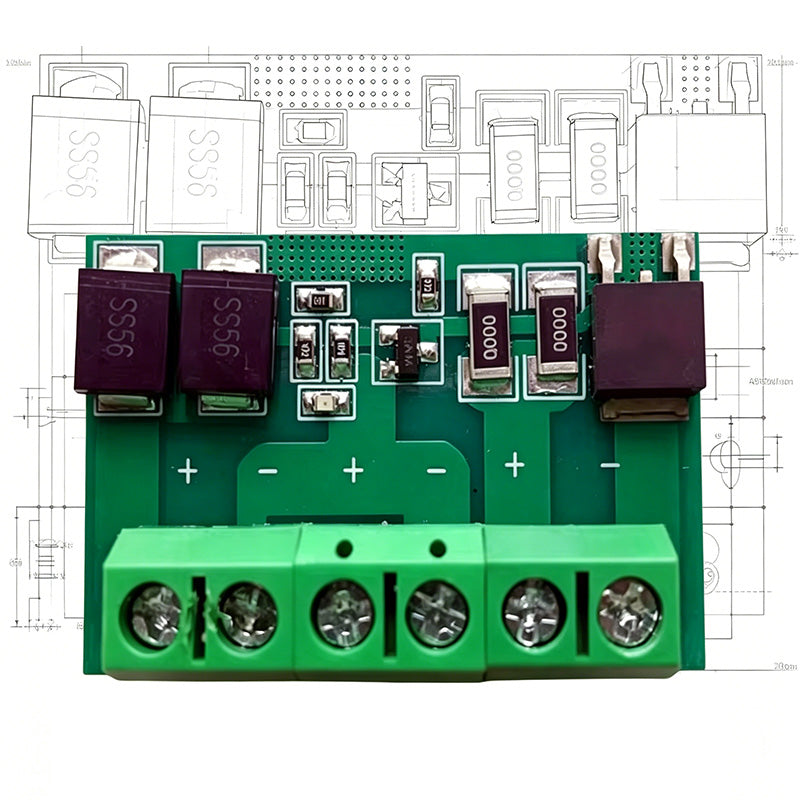

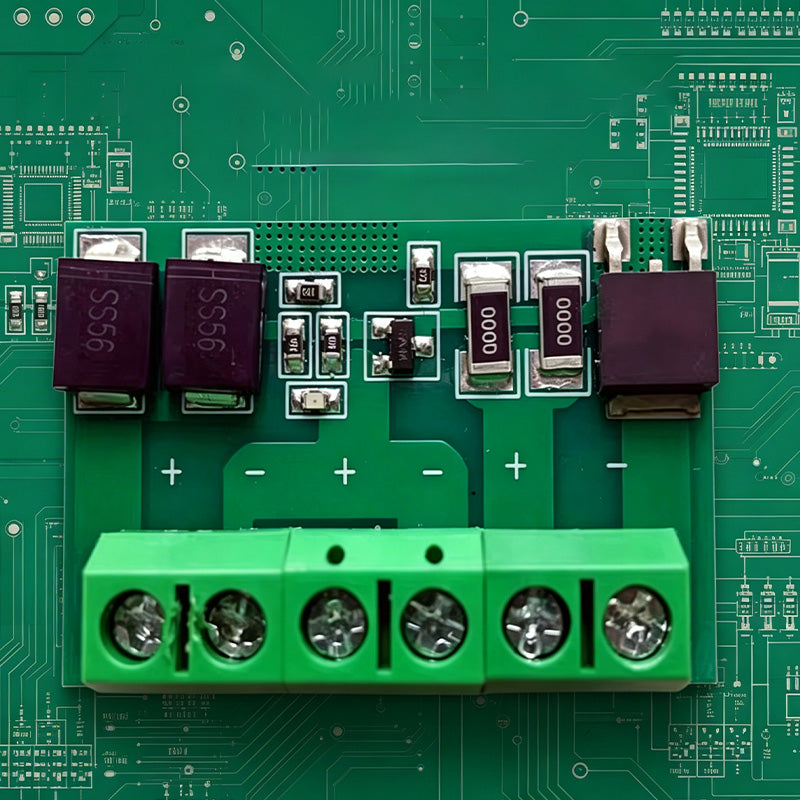

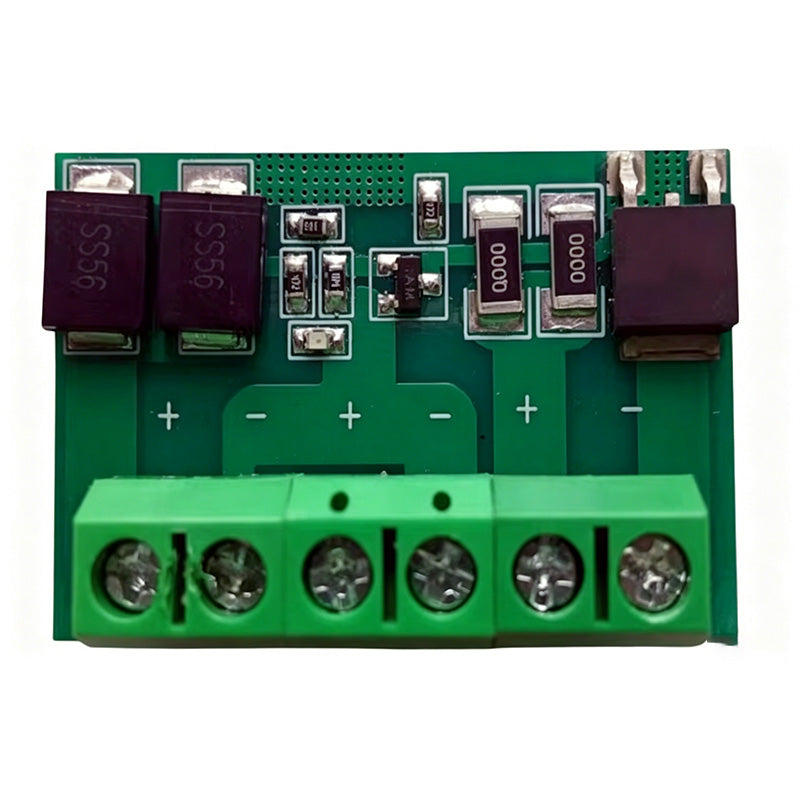

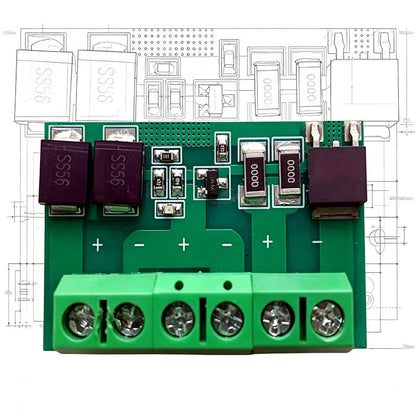

Automatic Solar Light Controller Circuit Board

FEATURES

AUTOMATIC LIGHT SENSING - Automatically activates your lights at dusk and deactivates them at dawn for charging, providing effortless, hands-free operation and maximizing energy efficiency without any manual intervention.

HIGH-POWER COMPATIBILITY - Supports a maximum voltage of 45V and a high output current up to 20A, making it ideal for powering a wide range of demanding solar lighting projects, from garden lights to street lamps.

EFFICIENT CHARGING MANAGEMENT - Intelligently manages the charging process from your solar panel to the battery, ensuring optimal power transfer and extending battery life by preventing overcharging and maximizing daily energy harvest.

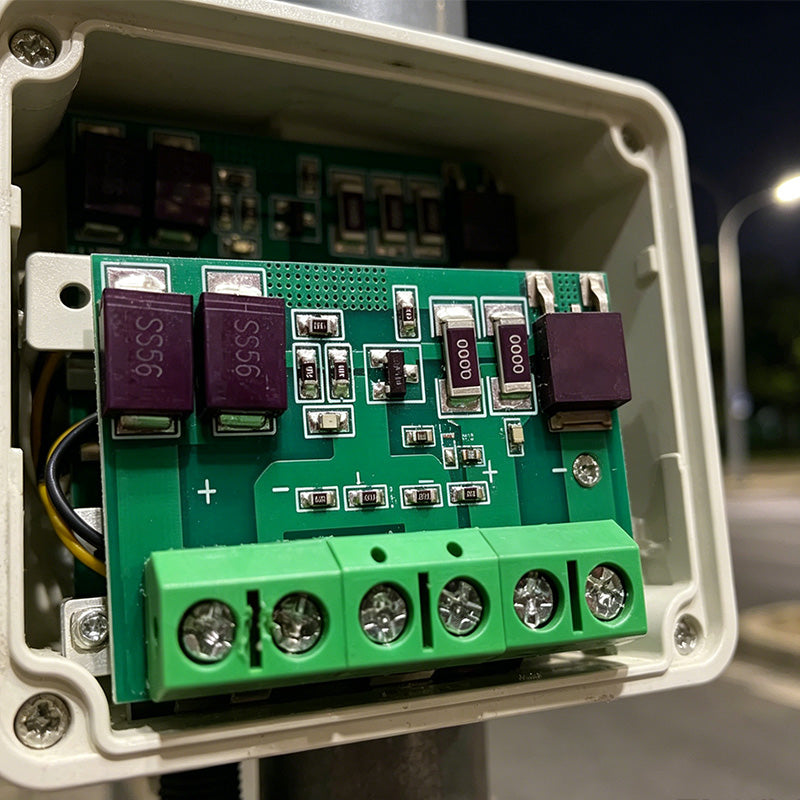

COMPACT AND INTEGRABLE DESIGN - Measuring only 38mm by 25mm, its ultra-compact footprint allows for easy integration into various light fixtures and enclosures, perfect for both new DIY projects and upgrading existing solar lights.

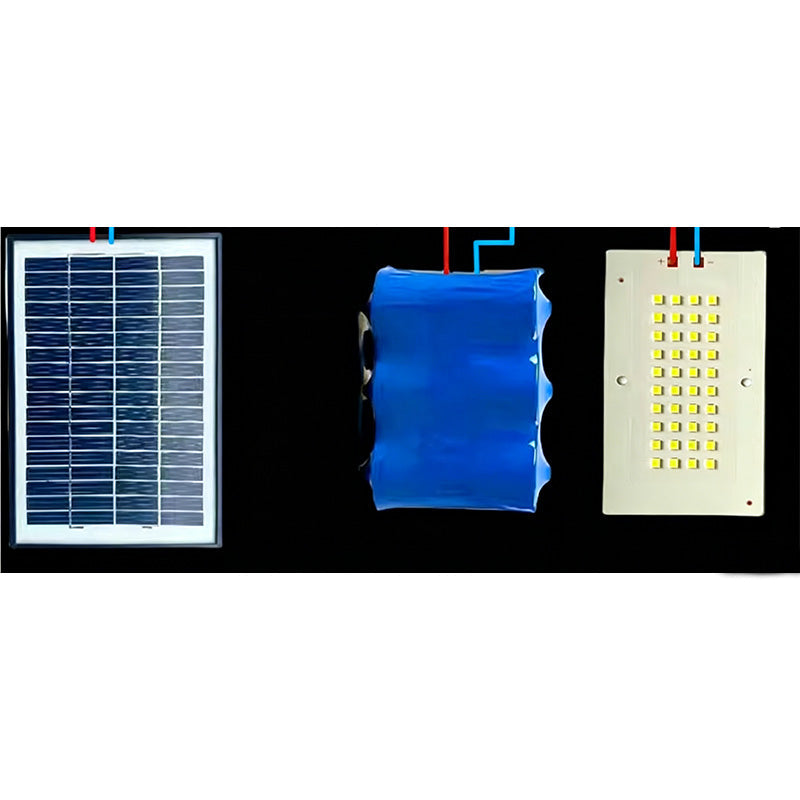

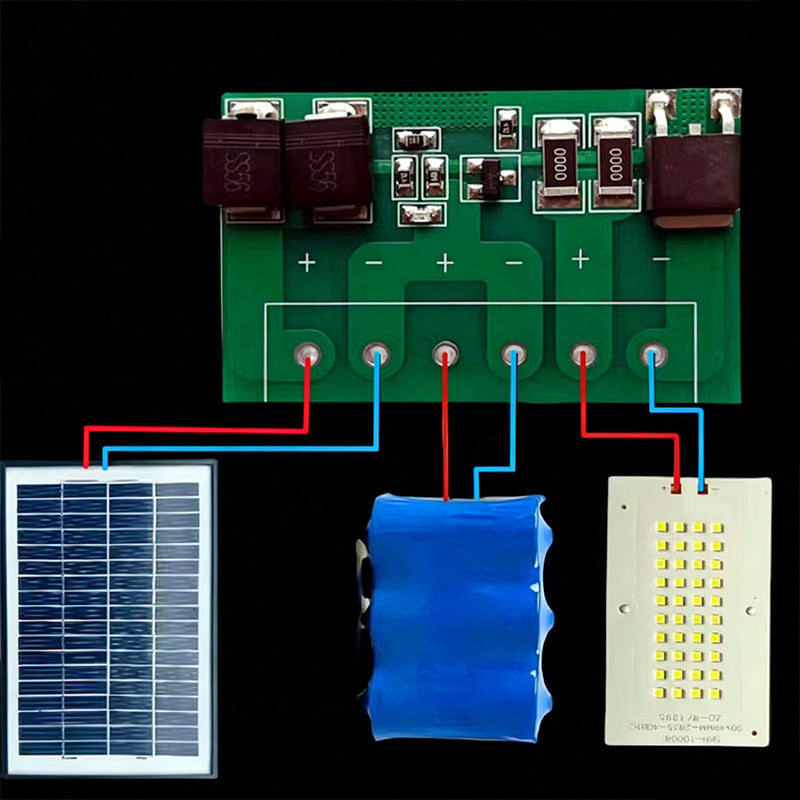

CLEAR CONNECTION TERMINALS - Features clearly labeled connection points for the solar panel, battery, and lamp, simplifying the wiring process and ensuring a correct, secure setup for reliable performance right from the start.

SPEC

Color: Green

Size: 38mm x 25mm (1.5 inches x 0.98 inches)

Maximum Voltage: 45V

Maximum Charging Current: 10A

Maximum Output Current: 20A

PACKAGE INCLUDES

1 x Solar Light Control Circuit Board

NOTES

Ensure proper heat dissipation when operating with high currents to prevent overheating and ensure long-term stability.

Please verify the polarity (+/-) of the solar panel, battery, and light before connecting to avoid damage to the board.

This board is compatible with various battery types; please ensure your battery's voltage is within the operating range.
